Description

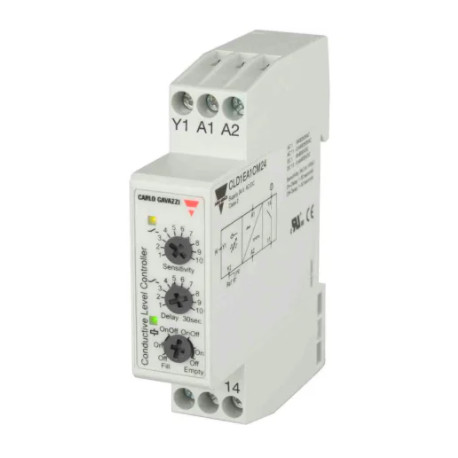

µ-Processor based level controller for liquids with a wide sensitivity range from 5 KΩ to 150 KΩ.
One probe level control with built in ON or OFF time delay for filling or emptying applications. The time delay can be set from 1 to 30 seconds.
Features
• Conductive level controller
• Sensitivity adjustment 5 KΩ to 150 KΩ
• For filling or emptying applications
• Low-voltage AC electrodes
• Easy installation on DIN rails 17.5 mm
• Rated operational voltage: 24 VAC/DC
• Output 8A/250 VAC SPST relay
• LED indication for: Output ON, Power ON
