Description

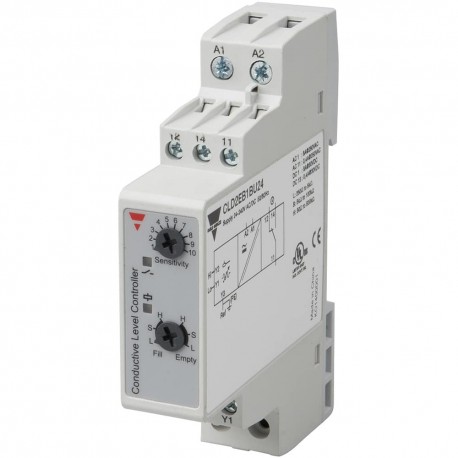

µ-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.).
Max./min. control of charging/ discharging. The sensitivity is adjustable by means of the potentiometer. 1 x 8 A SPDT relay output.
Features
• Conductive level controller
• Sensitivity adjustment from 250 Ω to 500 KΩ
• For filling or emptying applications
• Low-voltage AC electrodes
• Easy installation on DIN rails
• Rated operational voltage: 24 to 240 VAC/DC
• Output 1 x 8 A / 250 VAC SPDT relay
• LED indication for: Output ON and Power ON
