Description

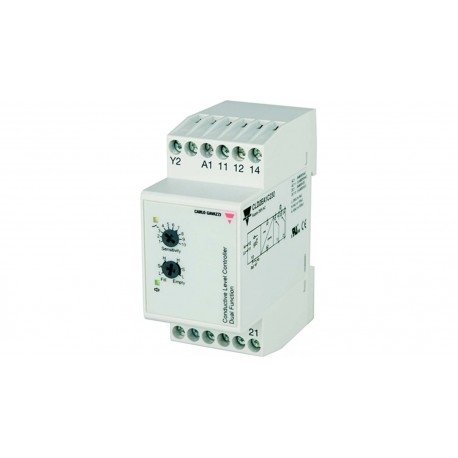

µ-Processor based level controller for liquids with a wide sensitivity range (like sewage water, chemicals, salt water etc.).
Max./min. control of charging/ discharging. The sensitivity is adjustable by means of the potentiometer and the rotary switch. 2 x 8A DPDT relay output.
Features
• Conductive level controller
• Sensitivity adjustment from 250 Ω to 500 KΩ
• For filling or emptying applications
• Low-voltage AC electrodes
• Easy installation on DIN rails or with 11 pin circular plug
• Rated operational voltage: 24 VAC/DC, 115 VAC or 230 VAC
• Output 2 x 8A/250 VAC DPDT relay
• LED indication for: Output ON and Power ON
