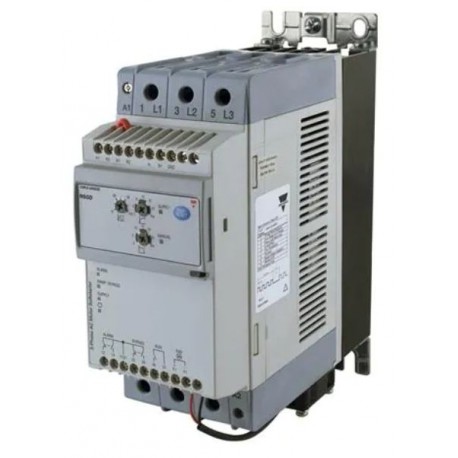

The RSGD Series is an extremely compact and easy to use 3-phase soft starter for AC induction motors rated up to 100Arms.

The starting parameters can be easily set-up through 3 knobs.

RSGD soft starters are the ideal solution for 3-phase fixed speed AC induction motor applications where they can reduce the starting current and/or minimise stresses on the motor during start and stop.

RSGD also offers a number of integrated diagnostic functions that can replace additional components inside the electrical panel.

Features

– Operational current 55 A up to 100 A

– Horsepower rating up to 40 HP

– Operational voltage: 220 VAC up to 600 VAC

– 24 VAC/VDC or 100-240VAC control voltage

– Two phase controlled with internal bypass

– Optional: motor overload protection (Class 10)

– Compact 75 mm wide housing

– Self-learning algorithm to optimize motor starts

– Current balancing algorithm

– Three relay outputs for Alarm and Top of Ramp

– cUL, CE, CCC, EAC approvals
