Description

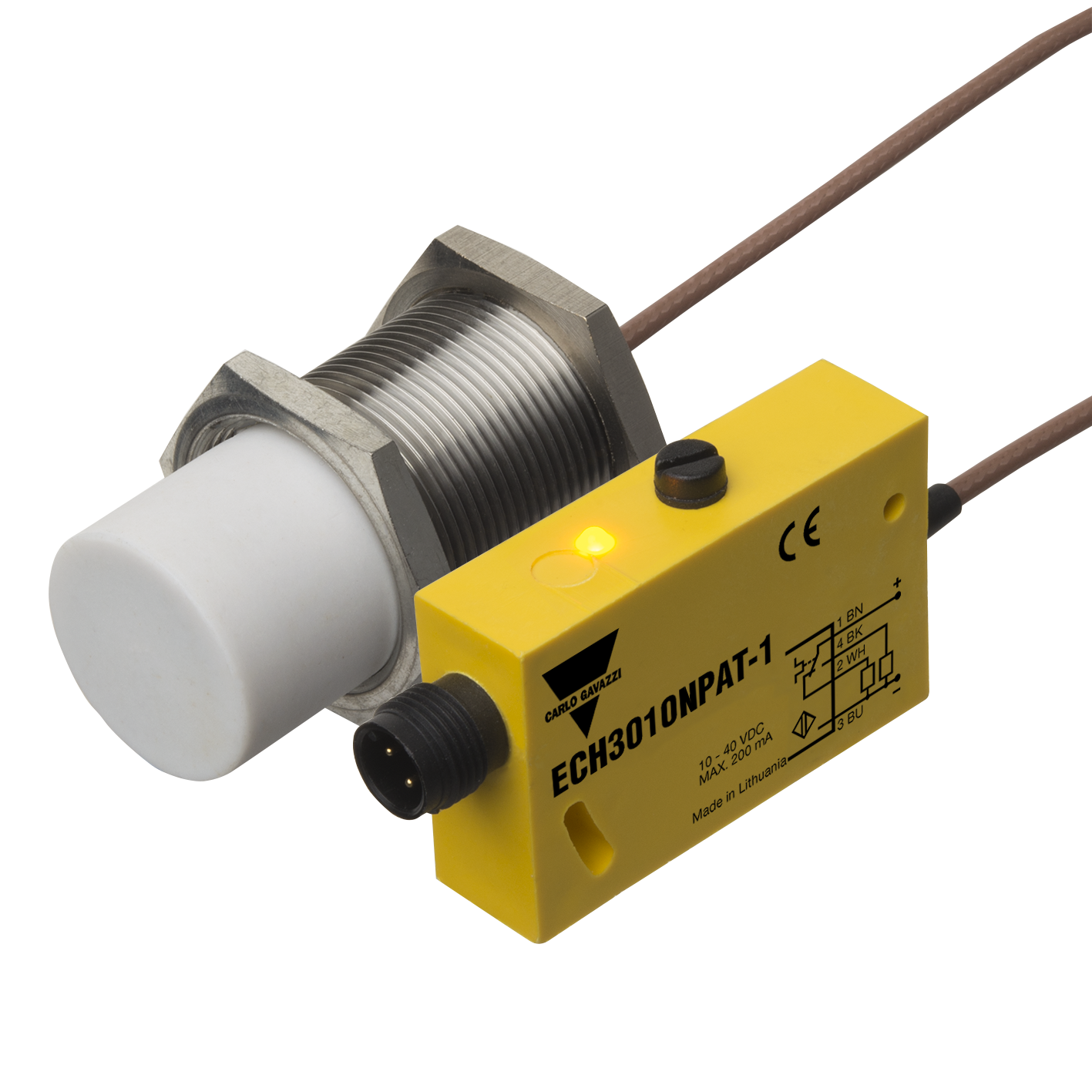

Capacitive proximity switch for non-flush mounting with NPN or PNP open collector output. The sensor is provided with a separate teflon sensor head in M30 for temperature application within the range of -196°C and +180°C ambient temperature, e.g. plastic pellet/resin detection in plastic injection moulding machines and drying equipment, and detection of hot wax as used in e.g. car manufacturing.
Features
• For temperature applications, from -196°C to +180°C
• Sensor diameter: M30, teflon and stainless steel
• Adjustable sensing distance: 4 to 15 mm, factory set for 10 mm
• Power supply: 10 to 40 VDC
• Output: transistor NPN or PNP, make & break switching
• Protection: Reverse polarity, short-circuit, transients
• LED-indication for output ON
• Separate amplifier and sensor
• Plug connection
