Description

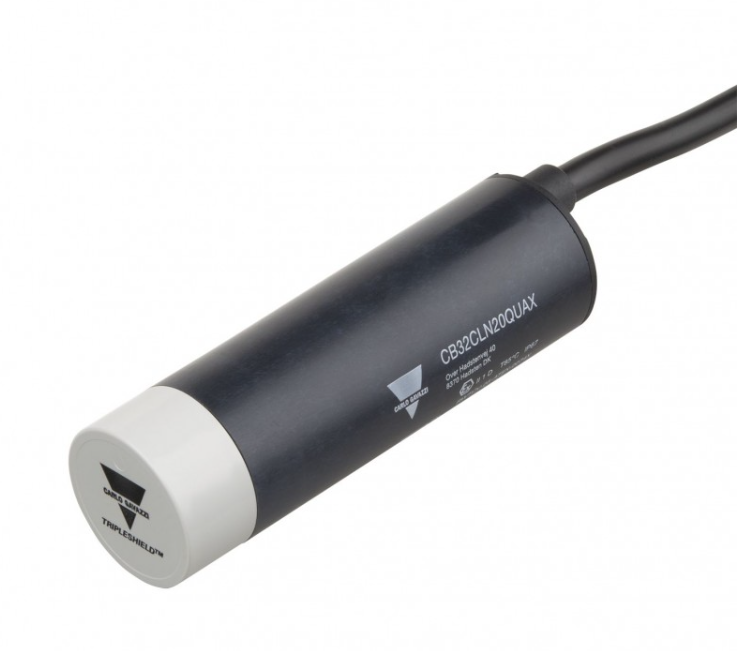

ATEX approved Capacitive sensor in thermoplastic polyester for mounting in PG 36 screw gland. Available with adjustable sensing distance and with/without built-in time delay (ON or OFF delay).
The relay output ensures that the load can be driven directly. Excellent for use in the agriculture area (detection of grains, fluids etc.).
Features
• Capacitive level sensor for solid, fluid or granulated substances
• Approved according to ATEX directive 2014/34/U for operation in potential explosive dusty atmospheres
• Classified as equipment for use in atmospheres with continuous presence of explosive dust with an ignition temperature above 85°C
• Adjustable sensing distance: 4-20 mm
• With or without adjustable time delay
• Featuring TRIPLESHIELD™ Sensor Protection
• Protection: Transients and reverse polarity
• 5 years of warranty
Type Selection (Cable Length: 2m, 5m or 10m)
Supply Voltage |
With ON delay |
WIth OFF delay |
Without time delay |
120 VAC |
CB32CLN20SUAX |
CB32CLN20SVAX |
CB32CLN20STAX |
230 VAC |
CB32CLN20RUAX |
CB32CLN20RVAX |
CB32CLN20RTAX |
24 VAC/DC |
CB32CLN20QUAX |
CB32CLN20QVAX |
CB32CLN20QTAX |
