Description

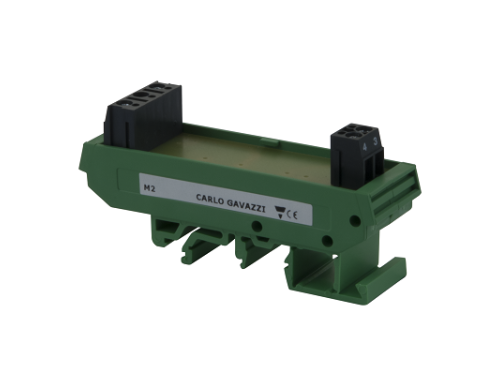

DIN rail adaptor module for mounting RP series SSRs on DIN rail. The RPM1 is intended for max. operational voltage of 250V, whilst the RPM2 can be used up to 600V.

The RP SSR is not included. Suffix ‘M1’ or ‘M2’ is added to the SSR part no. for a factory mounted solution.

Note that when the RP..10 is mounted on DIN rail (vertical mounting), a derating factor has to be applied.

Selection Guide

Part No. Description Packing Qty
RPM1 250V module with LED 1
RPM1V 250V module with LED + varistor across output terminals 1
RPM1P 250V module with pins for easy removal of RP unit 1
RPM1PD 250V module with pins for easy removal of RP unit + LED 1
RPM2 600V module with LED 2
