Description

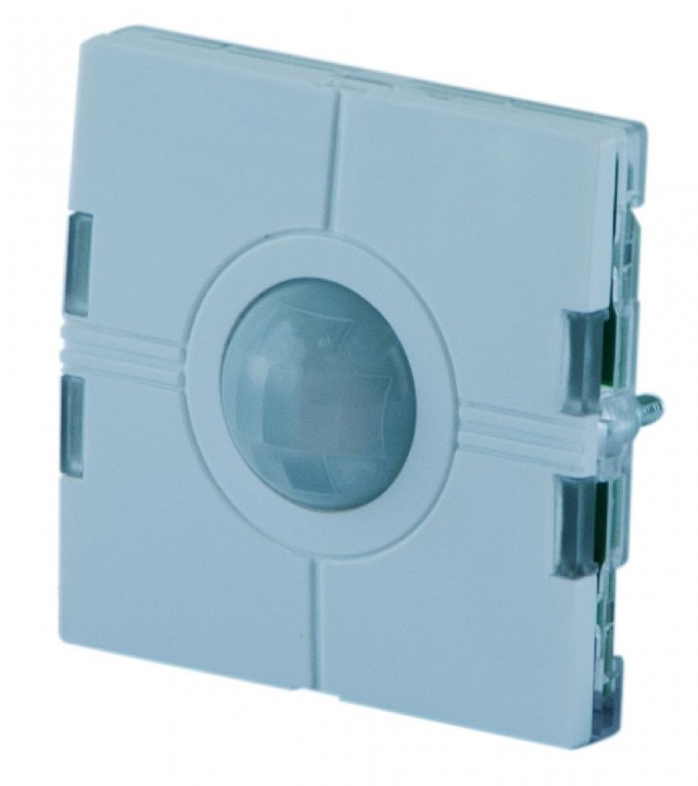

The SHE5XLS4P90L is a light switch with a 90° PIR sensor * to detect presence and/or movement in indoor installations with built-in luxmeter, combining three products in one. It is part of the smart-house concept and can be used to control lights, rollerblinds, air-conditioning, intruder alarms and all the other functions supported by the smart-house system, in an automatic way depending on people-presence. This sensor is completely programmable via the SH tool.
Features
• Light Switch with passive infrared presence/movement detector and built-in luxmeter
• Light measuring range: 0 to 20 klux
• Developed to fit into wall socket and frames from Elko, Gira and Jung
• Indoor applications
• PIR operating distance: max 10 m
• Supplied by bus, no external power required
• Programmable white and blue LEDs for presence and movement detection
• Delivered with 2 white and 1 black push-button covers
• 4 individually programmable push-buttons
