Description

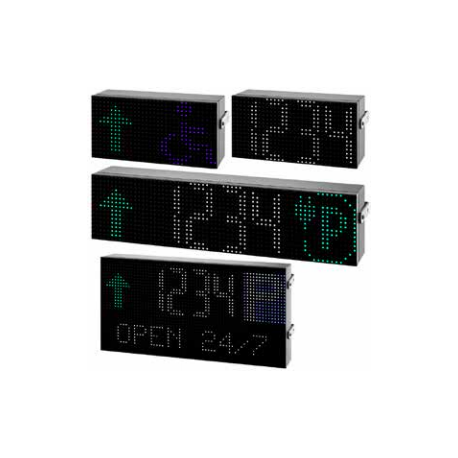

The DISxRSE displays are part of the Dupline® Carpark system, which contains other variants of sensors, controllers and displays.
It is used for guiding in car park facilities.
The displays can be programmed via the webbased configuration software: the available spaces can be displayed by means of different combinations of digits and symbols.
The displays are compatible with the Carpark systems based on the UWP 3.0/SBP2CPY24 controller and they must be connected to the display interface SBP2DI48524.
Benefits
• Robust and aesthetic look display made of aluminium.
• Bright RGB LED matrix.
• The colour of the numeric digits can be selected between 7 available.
• Digits and symbols displayed in different combinations.
• Viewing distance up to 50 metres.
• Adjustable brightness with 4 light levels.
• Indoor and outdoor use.
• Temperature range down to -30 ˚C.
• Comunication via bus or API.
• Programmable custom messages.
• Programmable digit dimensions.
Features
Material | Aluminium |
Dimensions (LxWxH) | DISARSE: 260 mm x 80 mm x 150 mm
DISBRSE: 520 mm x 80 mm x 150 mm DISCRSE: 520 mm x 80 mm x 255 mm |
Weight | DISARSE: 1800 g
DISBRSE: 3200 g DISCRSE: 5500 g |
Colour | Black |
Protection Grade | DISARSE, DISBRSE: IP55
DISCRSE: IP24 |
