Description

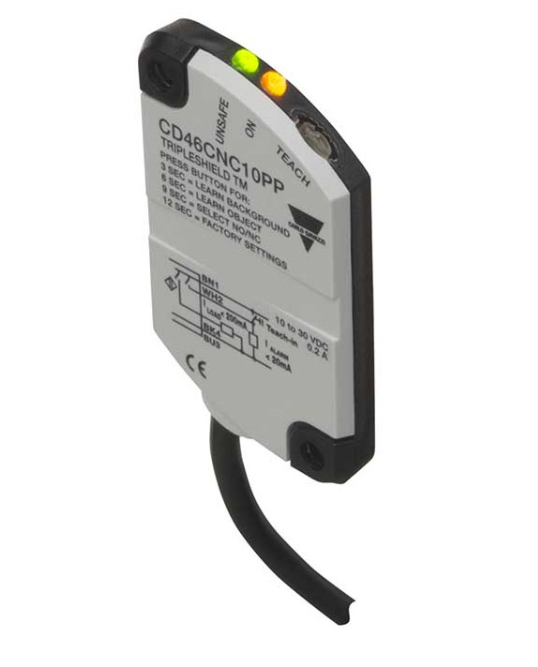

Capacitive proximity level switch with a sensing distance of 10 mm non-flush mounted.
The switching points can be altered by means of the Teach-in function.
3-wire DC output with selectable make (NO) or break (NC) switching and NPN Alarm.
Grey/black polyester housing with 2 m PVC cable. Designed for front, pipe or plane mounting.
Features
• Thin Profile Capacitive Level Sensor
• Featuring TRIPLESHIELD™ Sensor Protection
• Sensing distance: 1 – 10 mm
• Teach-in of sensing distance via push-button or wire-input
• Selectable make or break switching by means of Teach-in function
• Protection: Short-circuit, transients and reverse polarity
• Alarm output
• 5 years of warranty
• Alarm output when operating current > 250 mA
