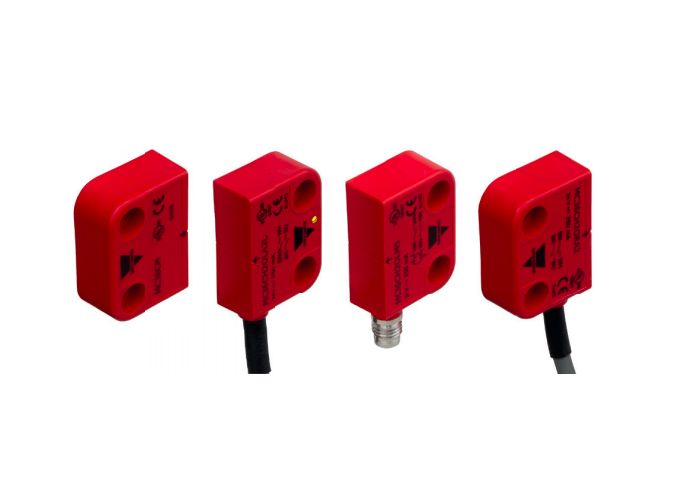

The MC36C series are encoded safety magnetic sensors with compact housing used to monitor the position of hinged, sliding or removable guards of industrial applications.

Carlo Gavazzi safety sensors stop or disconnect the dangerous motions, if the mobile protections are opened or displaced. They are suitable for safety gates applications up to safety category 4, PLe according to EN ISO 13849-1 with suitable logic safety module.

MC36C sensors are the right answer in harsh industrial environments with damp and dusty condition.

Features

• Standards compliance. Up to Cat. 4 PL e in accordance with EN ISO 13849-1.

• Customizable. The sensors are available with left or right exit, integrated cable or M8 connection and optionally LED indicator.

• High performance. Reinforced polymeric casing (PBT) with a protection degree IP67, operating temperature range from -25°C to +80°C.

• Compact dimensions. Only 36 x 26 x 13 mm

• Different outputs. 2NO or 1NO + 1NC. (The status of the output is intended without the actuator)

• Approvals by CE, cULus
