Description

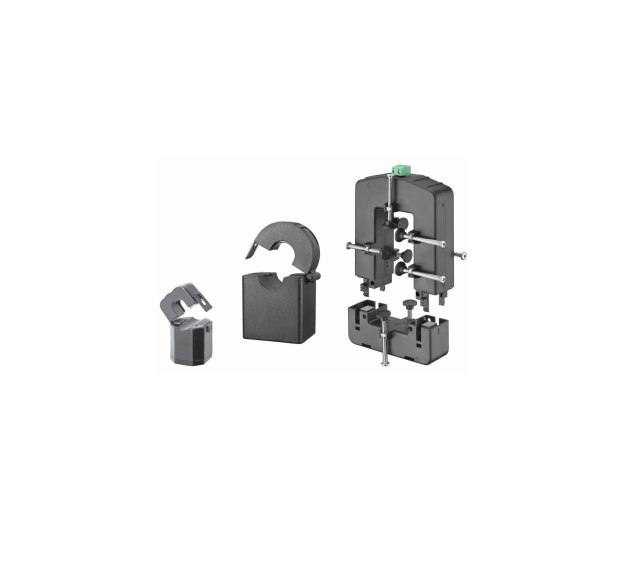

Split core current sensor (333 mV output) with compact dimensions, suitable for retrofit applications when used in combination with EM210 72 D MV energy analyzer.

It manages primary current from 60 A to 800 A (it depends on the model).

Benefits

• Adaptability and flexibility. Effective for a wide range of currents, it can be installed in existent applications.

• Fast installation. The opening/closing mechanism makes installation fast even in existent applications.



Features

• Suitable for retrofit applications

• 9.5 to 36 mm hole diameter

• 50 x 90 mm hole diameter (CTV-8X model only)

• Cable length: 1.5 m

• Detachable screw terminals (CTV-8X model only)

• 333mV secondary output voltage

• Material: PA66

• Protection Degree: IP 20

• Mounting: Cable; Busbar (CTV-8X)

• Weight (g):

– CTV1X: 60

– CTV2X: 66

– CTV3X: 118

– CTV4X: 200

– CTV6X: 300

– CTV8X: 725
