Description

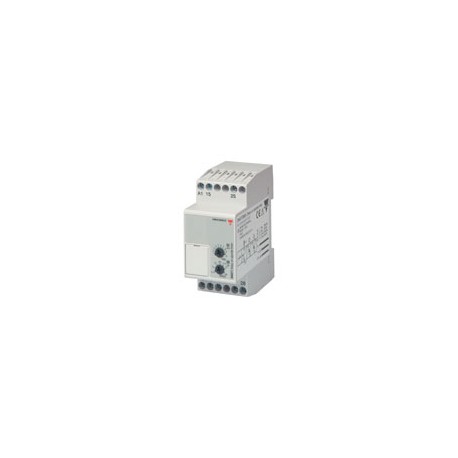

Multi-voltage delay on operate timer with 7 selectable time ranges within 0.1 s and 100 h. For mounting on DINrail

Housing 17.5 mm wide for SPDT version and 35.5 mm for DPDT version, suitable both for back and front panel mounting.



Features

• Time range 0.1 s to 100 h

• Knob selection of time range

• Knob adjustable time setting

• Automatic start

• Repeatability: ≤ 0.2%

• Output: 5 A SPDT or 5 A DPDT relays

• For mounting on DIN-rail in accordance with DIN/EN 50 022

• 17.5 mm (DAA51C) or 35.5 mm (DAA71D) DIN-rail housing (DIN 43880)

• Combined AC and DC power supply

• LED indication for relay status and power supply ON
