Description

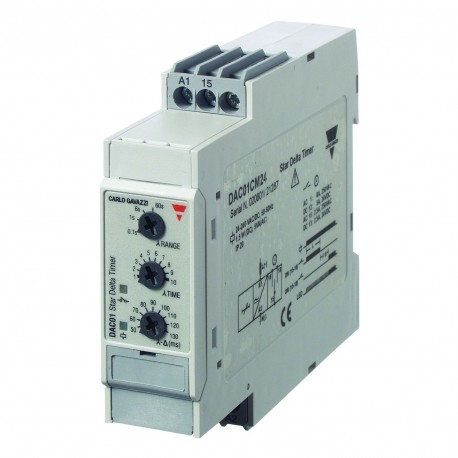

Star-delta control relay with two adjustable time ranges: Star function (0.1 to 600 s) and star to delta function (50 to 130 ms).
For mounting on DIN-rail (DAC 01) on Plug-in (PAC01).
Features
• Time range (Star): 0.1 to 600 s
• Time range (Star to Delta): 50 to 130 ms
• Knob selection of star time range
• Knob adjustable time setting
• Automatic start
• Repeatability: ≤ 0.2%
• Output: 8 A SPDT relay with neutral centre position
• For mounting on DIN-rail in accordance with DIN/EN 50 022
• 22.5 mm Euronorm housing or 36 mm Plug-in module housing
• LED indication for relay status and power supply ON
