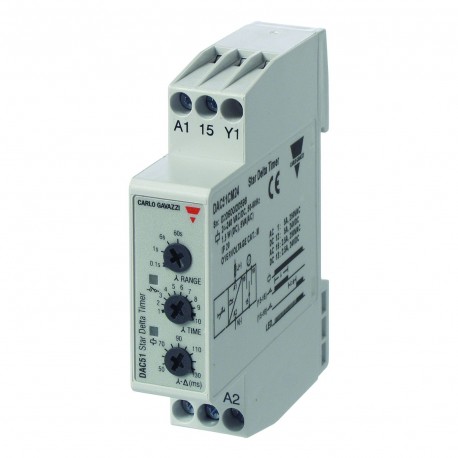

Star-delta control relay with two adjustable time ranges: Star function (0.1 to 600 s) and star to delta function (50 to 130 ms).

Housing 17.5 mm wide suitable for DIN-rail mounting. Fits in M36 cover.

Features

• Time range (Star): 0.1 to 600 s

• Time range (Star to Delta): 50 to 130 ms

• Knob selection of star time range

• Knob adjustable time setting

• Automatic start

• Repeatability: ≤ 0.2%

• Output: 5 A SPDT relay with neutral centre position

• For mounting on DIN-rail in accordance with DIN/EN 50 022

• 17.5 mm Din-rail housing (DIN 43880)

• LED indication for relay status and power supply ON
