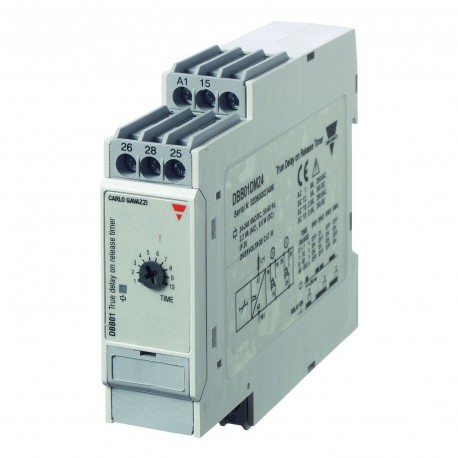

Multi voltage true delay on release timer with 4 time ranges from 0.1 to 600 s selectable by DIP-switches.

For mounting on DIN-rail (DBB01) or Plug-in (PBB01).

Features

• Time range 0.1 to 600 s – capacitor powered

• 4 time ranges selectable by DIP-switches

• Knob-adjustable time setting

• Automatic start after drop-out of power supply

• Repeatability: ≤ 0.2%

• Output: 8 A SPDT or 8 A DPDT relay

• For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in

• 22.5 mm Euronorm or 36 mm Plug-in module housing

• Combined AC and DC power supply

• LED indication for power supply ON
