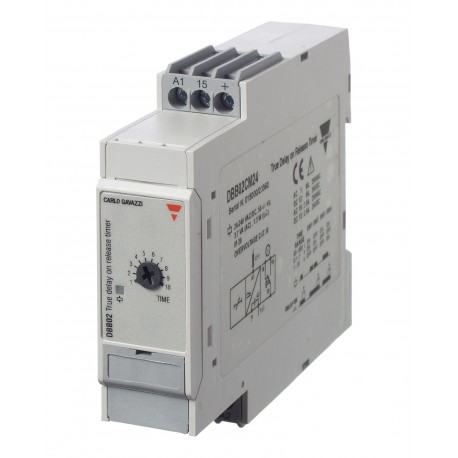

DBB02 True Delay on Release Timer
Loading...
Description
Multi voltage true delay on release timer with 3 time ranges from 60 s to 10 h selectable by DIP-switches. The built-in non-replaceable battery (Ni-MH) will be charged while the power supply is applied.
For mounting on DIN-rail (DBB02) or Plug-in (PBB02).
Features
• Time range 60 s to 10 h – battery powered
• 3 time ranges selectable by DIP-switches
• Knob-adjustable time setting
• Automatic start after drop-out of power supply
• Repeatability: ≤ 0.2%
• Output: 8 A SPDT or 8 A DPDT relay
• For mounting on DIN-rail in accordance with DIN/EN/ EC 60715 or Plug-in
• 22.5 mm Euronorm or 36 mm Plug-in module housing
• Combined AC and DC power supply
• LED indication for power supply ON
