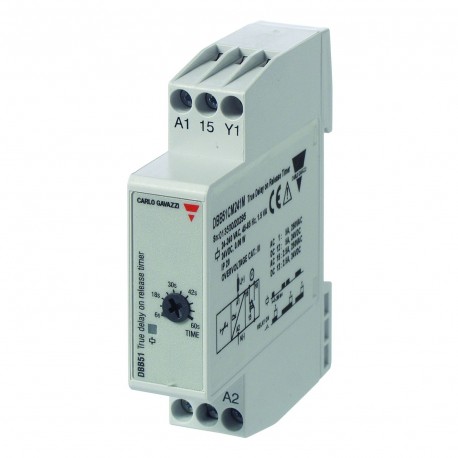

DBB51 True Delay on Release Timer
Loading...
Description
Multi voltage (true) delay on release timer.
Time ranges from 1 to 600 s covered by 3 models.
Housing 17.5 mm wide suitable for DIN-rail mounting.
Fits in M36 cover.
Features
• Time range 1 to 600 s – capacitor powered
• Knob-adjustable time setting
• Automatic start after drop-out of power supply
• Repeatability: ≤ 0.2%
• Output: 5 A SPDT relay
• For mounting on DIN-rail in accordance with DIN/EN 50 022
• 17.5 mm DIN-rail housing (DIN 43880)
• Combined AC and DC power supply
• LED indication for relay status and power supply ON
