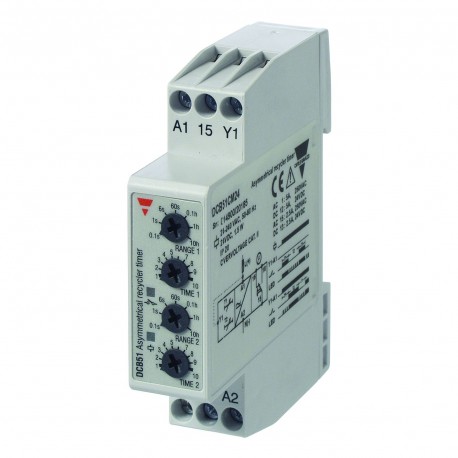

DCB51 Asymmetrical Recycler Timer
Loading...
Description
Combined function timer with asymmetrical recycler ON or OFF first selectable by connection between pins A1 and Y1.
Individual selection of the time ranges from 0.1 s to 100 h.
For mounting on DIN-rail.
Features
• Time range 0.1 s to 100h
• 2 selectable functions:
Aa – Asymmetrical recycler ON first
Ab – Asymmetrical recycler OFF first
• Selection of time range by front knobs
• Knob adjustable time setting
• Automatic start
• Output: 1 x SPDT relay
• For mounting on DIN rail in accordance with DIN/EN 50 022
• 17.5 mm DIN-rail housing
• Combined AC and DC power supply voltage
• LED indication for relay status and power supply ON
