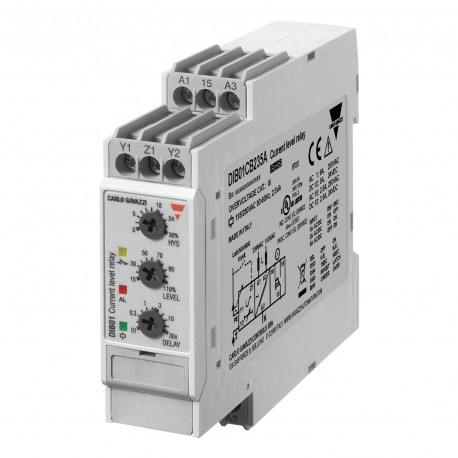

DIB01 and PIB01 are precise TRMS AC/DC over or under current (selectable by DIPswitch) monitoring relays. Direct measuring or through current transformer.

Owing to the built-in latch function, the ON-position of the relay output can be maintained. Inhibit function can be used to avoid relay operation when not desired (maintenance, transitions).

The LED’s indicate the state of the alarm and the output relay. Through the built-in shunt it is possible to monitor loads up to 10 A AC/DC.

Features

• TRMS AC/DC over or under current monitoring relay

• Current measuring through internal shunt

• Selection of measuring range by DIP-switches

• Measuring ranges from 0.1 mA to 10 A AC/DC

• Adjustable current on relative scale

• Adjustable hysteresis on relative scale

• Adjustable delay function (0.1 to 30 s)

• Programmable latching or inhibit at set level

• Output: 8 A SPDT relay N.D. or N.E. selectable

• For mounting on DIN-rail in accordance with DIN/EN/EC 60715 (DIB01) or plug-in module (PIB01)

• 22.5 mm Euronorm housing (DIB01) or 36 mm plug-in module (PIB01)

• LED indication for relay, alarm and power supply ON

• Galvanically separated power supply
