Diffuse-Reflective Sensors (Metal Housing)
Description

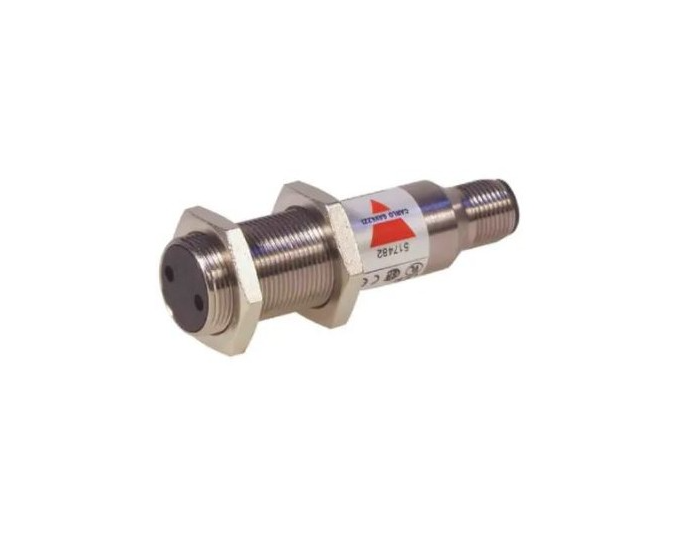

The EO1804 is a family of general purpose diffuse-reflective sensors in a short M18 metal housing for heavy duty applications.
The PA18ALD.. is a family of general purpose diffusereflective sensors in industrial standard 18 mm cylindrical nickel-plated brass housing for heavy duty applications.
They are useful for simple applications where a basic sensor provides adequate sensing performance.
The sensors are easy to adjust with 270° single turn potentiometer.
The output for EO1804 is a 4- wire complementary (NO and NC) output in NPN (current sinking) or PNP (current souring).
The output for PA18ALD.. is a 2- wire NO or NC thyristor (SCR) output.
Features
| EO1804 | PA18ALD.. |
| • Range: 400 mm adjustable
• Modulated, infrared light • Supply voltage: 10 to 40 VDC • Output: 200 mA NPN or PNP • Make and break switching function, LED indication • Protection: Reverse polarity, short-circuit, transients • High immunity to ambient light • Heavy duty M18 metal housing, IP67 • Cable and plug versions |
• Range: 400 mm adjustable
• Modulated, infrared light • Supply voltage: 20 to 250 VAC • Output: 500 mA SCR • Make or break switching function, LED indication • High immunity to ambient light • Heavy duty M18 metal housing, IP67 • Cable and plug versions |
PA18ALD spec: https://sclsystem.creaworld.sg/wp-content/uploads/2024/04/PA18ALDT.pdf
