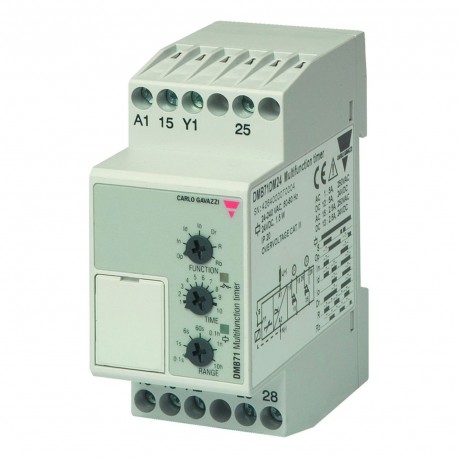

Description
Multi-voltage timer with 7 knob-selectable functions and 7 knob-selectable time ranges within 0.1s and 100h.
For mounting on DIN-rail.
Housing 17.5 mm wide for SPDT version and 35.5 mm for DPDT version, suitable both for back and front panel mounting.
Wide power supply range: 24 VDC and 24 to 240 VAC or 12 to 240 VAC/DC.
• Selectable time range 0.1 s to 100 h
• 7 knob selectable functions:
Op – delay on operate
In – interval
Io – interval on trigger open
Id – double interval
Dr – delay on release
R – symmetrical recycler ON first
Rb – symmetrical recycler OFF first
• Automatic or manual start
• Repeatability: ≤ 0.2%
• Output: 5 A SPDT or 5 A DPDT relays
• For mounting on DIN-rail in accordance with DIN/EN 50 022
• 17.5 mm (DMB51C) or 35.5 mm (DMB71D) DIN-rail housing (DIN 43880)
• Combined AC and DC power supply
• LED indication for relay status and power supply ON
