Description

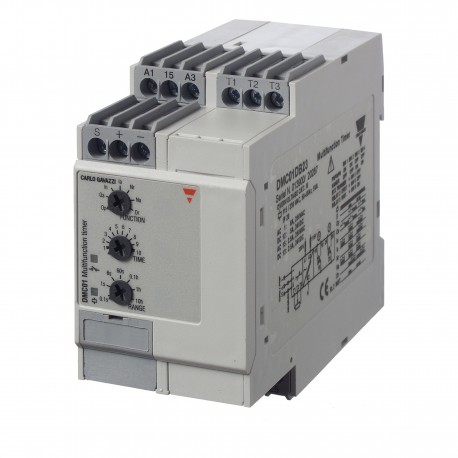

Multi-voltage timer with 7 knob selectable functions and 7 knob selectable time ranges within 0.1s and 100h.

Remote time setting available.

15 VDC, 10 mA (1 relay) or 24 VDC, 15 mA (2 relays) supply for PNP/NPN sensors and 8.2 VDC supply for Namur sensor. For mounting on DIN-rail (DMC01) or Plug-in (PMC01).



Features

• Time range 0.1 s to 100 h

• 7 knob selectable functions

Op – Delay on operate, manual start

Oa – Delay on operate, automatic and manual start

In – Interval, manual start

Ia – Interval, automatic and manual start

Nr – Interval with no time reset, manual start

Na – Interval with no time reset, automatic and manual start

Dr – Delay on release

• Knob selection of time range

• Knob adjustable time setting

• External adjustable time setting available

• Repeatability: ≤ 0.2%

• DC supply for PNP/NPN and Namur sensors

• Output: 8 A SPDT or 2 x 8 A SPDT relay

• For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in

• 22.5 mm or 45 mm Euronorm or 36 mm Plug-in module housing

• LED indication for relay status and power supply ON
