Description

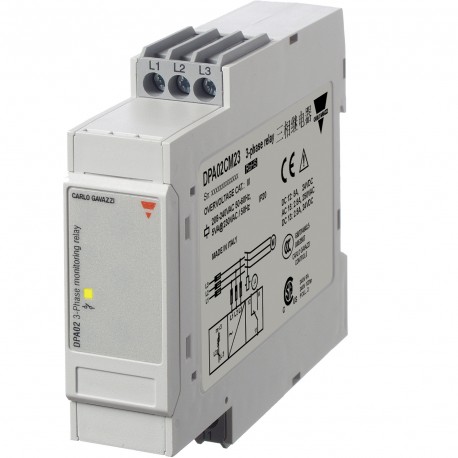

3-phase relay for detection of incorrect phase sequence. Supply range from 208 to 240 and 380 to 415 VAC covered by two multi voltage relays. For mounting on DIN-rail or Plug-in module.
Features
• 3-Phase monitoring relays for phase sequence
• Measure their own power supply
• Power supply range: 208 to 240 and 380 to 415 VAC (±15%)
• Output 8 A SPDT relay normally energized
• For mounting on DIN-rail in accordance with DIN/EN 50 022 or Plug-in module
• 22.5 mm Euronorm housing (DPA02) or 36 mm Plugin module (PPA02)
• LED indication for relay ON
