Description

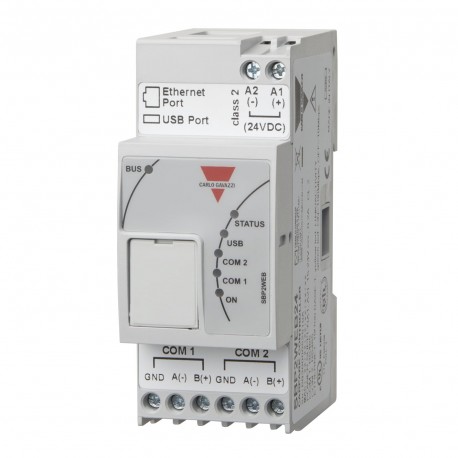

The SBP2WEB24 Carpark Controller is part of the Dupline® Carpark system.
In addition to the Carpark sensors, indicators and display interfaces, it is also possible to connect other sensors and I/O-modules like PIR detectors, lux sensors, light switches, relay modules and DALI dimmers, thereby allowing energy saving functions for lighting and ventilation to be implemented in the same controller and network that manages the Carpark system.
The various I/O’s and function parameters are available as BACnet/IP objects through the Ethernet port, thereby allowing seamless integration with any building management system.
The SBP2WEB24 also features a Carpark management software implemented as webserver, with graphical user interface for monitoring and booking, alarm handling and statistics functions, all available through a standard browser.
Features
• Compact and flexible Carpark Controller
• Parking guidance, booking, carpark management and smart building controls in one system
• Energy savings through active occupancy management and lighting/ventilation control
• Can manage up to 7 Dupline® 3-wire networks, each with up to 90 carpark sensors
• Possibility to link up 10 controllers together with SBP2CPY24 carpark server
• Seamless integration with BMS through BACnet/IP
• Built-in webserver with user interface for carpark management software
• User-friendly PC-based configuration tool
