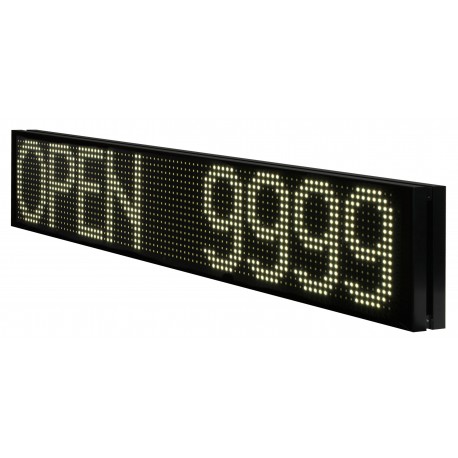

The SBPDIS9x display is a part of the Dupline® carpark system.

It is used for guiding in car park facilities.

Connected to the display interface SBP2DI48524. The display is a freely programmable display that allows the installer to decide to use the whole matrix for text, or to use part of it dynamically to show the number of available parking spaces.

The programmable display uses high-bright LEDs, which are visible at a distance of more than 50 m – also in bright sunlight.

This display is compatible with Carpark systems based on the SBP2WEB24 controller.

The display is built for both indoor and outdoor environments.

Benefits

• Robust and aesthetic looking display made of aluminium

• White LED,16 x 96 pixels, full matrix

• Option for text and numbers in combination

• Wide language selection, which can show for instance “OPEN 9999” and “CLOSED”

• Visible from a distance of more than 50 m

• Automatic brightness control

• Settings are configurable from the configuration software via a simple menu

• Same display for indoor and outdoor use

• Option for heated display with an extended temperature range below -20˚C
