Description

The SBPDISAxHx display is a part of the Dupline® carpark system.

It is used for guiding in car park facilities.

Connected to the display interface SBP2DI48524.

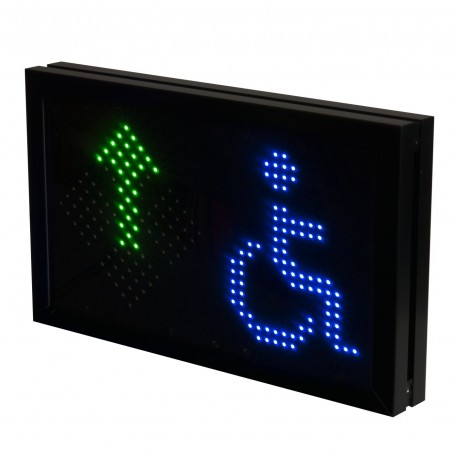

The display shows the direction by means of a green arrow or a red cross. The sign for disabled is steady blue.

The programmable display uses high-bright LEDs, which are visible at a distance of more than 50 m – also in bright sunlight.

This display is compatible with Carpark systems based on the SBP2WEB24 controller.

The display is built for both indoor and outdoor environments.



Benefits

• Robust and aesthetic looking display made of aluminium

• Brightly lit green arrow or red cross LEDs and a blue sign for disabled

• Visible from a distance of more than 50 m

• Automatic brightness control

• Settings are configurable from the configuration software via a simple menu

• Same display for indoor and outdoor use

• Option for heated display with an extended temperature range below -20˚C



Features

Power supply ≥ 24 VDC
Consumption 12 W (48 W heated version)
Interface RS485
Protocol Modbus RTU
Baud-rate 38400
Technology LED SMD
Arrow resolution Customized design 11 x 11 pixel
Disabled resolution Customized design 15 x 19 pixel
Viewing distance > 50 m
Symbols configuration Cross and arrow symbols: Green arrow and red cross

Disabled: Blue colour

Brightness control Automatic or manual
