Description

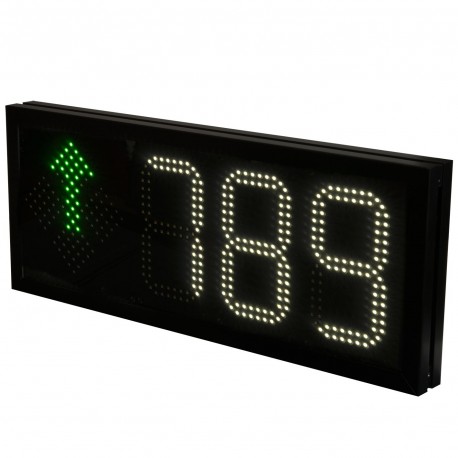

The SBPDIS3Axx display is a part of the Dupline® carpark system.
It is used for guiding in car park facilities.
Connected to the display interface SBP2DI48524. The display shows the number of available spaces by means of three white digits and the direction by means of a green arrow or a red cross.
The programmable display uses high-bright LEDs, which are visible at a distance of more than 50 m – also in bright sunlight.
This display is compatible with Carpark systems based on the SBP2WEB24 controller.
The display is built for both indoor and outdoor environments.
Benefits
• Robust and aesthetic looking display made of aluminium
• Brightly lit green-arrow or red-cross LEDs
• Three bright white LED digits
• Visible from a distance of more than 50 m
• Automatic brightness control
• Settings are configurable from the configuration software via a simple menu
• Same display for indoor and outdoor use
• Option for heated display with an extended temperature range below -20˚C
Features
Power supply | ≥ 24 VDC |
Consumption | 25 W (61 W heated version) |
Interface | RS485 |
Protocol | Modbus RTU |
Baud-rate | 38400 |
Technology | LED SMD |
Digit resolution | 7 segment 10 x 18 pixel |
Arrow resolution | Customized design 11 x 11 pixel |
Viewing distance | > 50 m |
Symbols configuration | Digits: White colour
Cross and arrow symbols: Green arrow and red cross |
Brightness control | Automatic or manual |
