Dupline Carpark Display Interface
Description

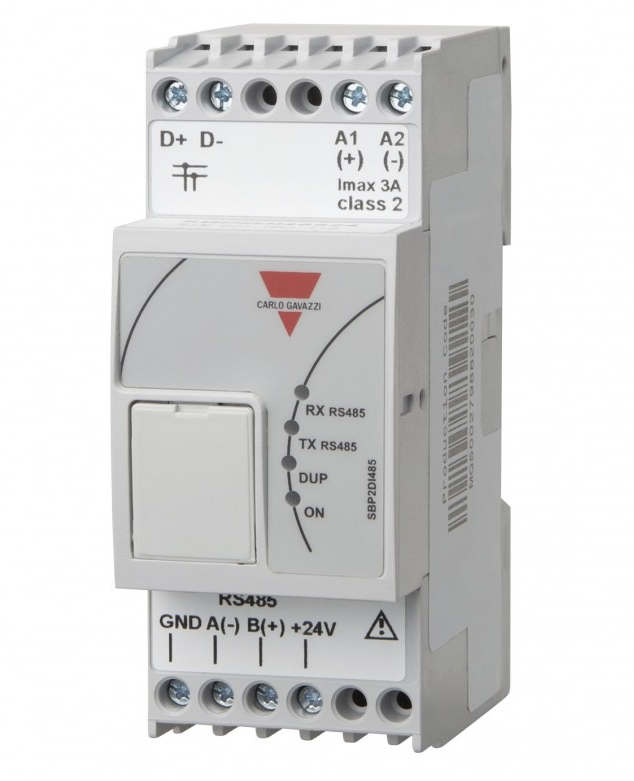

The SBP2DI48524 Display interface module is part of the Dupline® Carpark system which contains other variants of sensors, controllers and displays. The SBP2DI48524 is a Dupline® to Modbus RTU converter and acts as an interface between Dupline® and the Carpark displays.
The module is connected to the display via RS485 and is normally installed close by, but can be installed up to 300m from the display
Benefits
• Plug and play installation
• Can be mounted up to 300 m away from the display
• LED’s for indication of communication status
• Compact 2-DIN housing suitable for decentral installation
Features
| Rated operational voltage | 24 VDC (±20%), 20 mA, CL.2 |
| Rated operational power | 300 mW (display excluded) |
| Reverse-polarity protection | Yes |
| Connection | A1 (+) 24 VDC
A2 (-) 24 VDC D+ Dupline® bus D- Dupline® bus A (-) RS485 bus for display B (+) RS485 bus for display GND 24 (internally connected Max 5.5 A + display) Be sure to use correct power supply. The display is powered through the SBP2DI48524 and the internal connection can max handle 5.5 A. |
| Power-ON delay | Typical 2 s |
| Power-OFF delay | ≤ 1 s |
| Modbus specifications | – RS485
– Max one display can be connected – Integrated display protocol based on modbus RTU |
