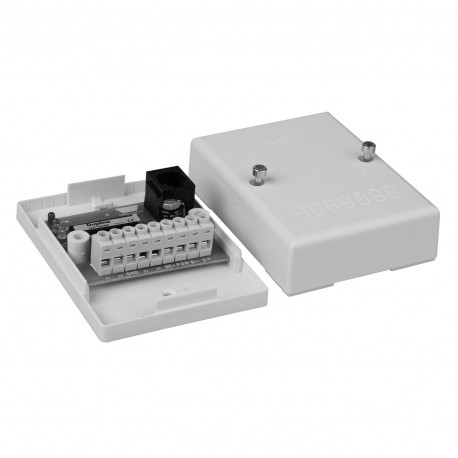

Dupline® input module with 4 contact/NPN transistor inputs, specially designed as a part of the Dupline® alarm concept for contact monitoring. The module can be used in connection with G 2196 000X, G3496 000X or G 3485 0000, which have Dupline® pulse controlled output. The module offers installer-friendly mounting and reliable operation and can be installed and maintained without the need for special tools or programming knowledge.

Features

• 4-channel transmitter + 1-ch. Receiver (Built-in red LED output)

• 4 contact or NPN transistor inputs

• LED-indications for supply and Dupline® carrier

• LED-indication for armed when using Dupline® supply

• 3-wire system with Dupline® and supply of module through G 3485 0000, G 3496 000X or G 2196 000X

• Channel coding by GAP 1605

• Open PCB with terminal connection

• Bracket for DIN-rail mounting available
