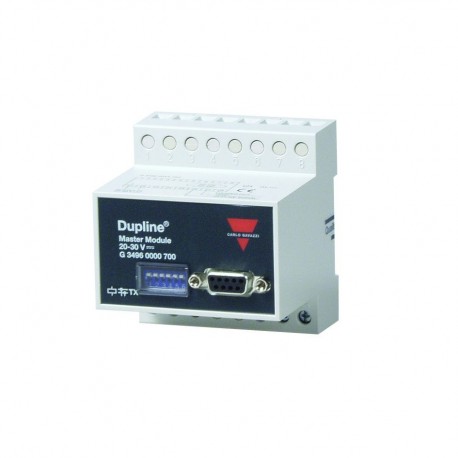

G 3496 0005 is designed as a cost-effective Plug & Play solution for interfacing Dupline® I/O’s to control systems. It performs three functions: Dupline® channel generator, power supply synchronization (enables 3-wire system with supply) and RS232/RS422/RS485 interface.

Features

• Interface for Modbus-RTU with the function of a slave

• Built-in normal Dupline® Channel Generator

• 128 I/O’s and DC power supply on 3 wires

• 32 Analink Inputs

• RS232/RS422/RS485 port for interfacing to control system

• Multidropping of up to 16 devices on RS485

• LED-indications for supply, Dupline® carrier and Comport TX

• Galvanically isolated Com-port supplied by internal DC/DC converter
