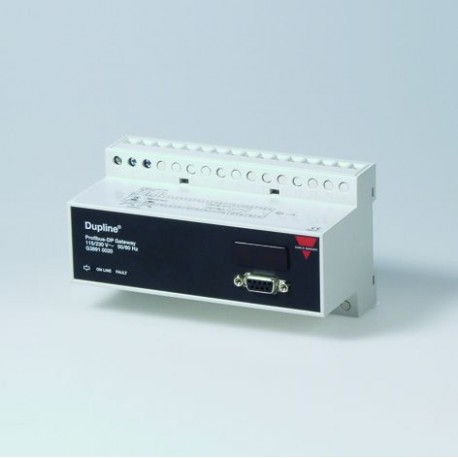

Dupline® Channel Generator with the function of a PROFIBUS-DP slave. This means that the 128 Dupline® I/O’s (incl. AnaLink) can be read/ controlled by PROFIBUS-DP masters (PLC’s, PC interface cards, etc. from various suppliers).

Several Dupline® gateways can be connected to the same PROFIBUS-DP network.

The unit is certified by PNO (Profibus Nutzer Organisation) which ensures compatibility and interoperability with other PNO-certified products.

Features

• Built-in Dupline® channel generator

• PROFIBUS-DP slave according to EN 50 170

• Certified by the PNO

• PROFIBUS-DP communication speed of up to 12 MBaud

• Read/control 128 Dupline® inputs/outputs through PROFIBUS-DP

• Split-I/O mode selectable (128 inputs and 128 outputs)

• Signals from AnaLink sensors available on the DP- network

• For mounting on DIN-rail (EN 50 022)

• LED indicators for supply, Dupline® carrier and fault

• AC power supply
