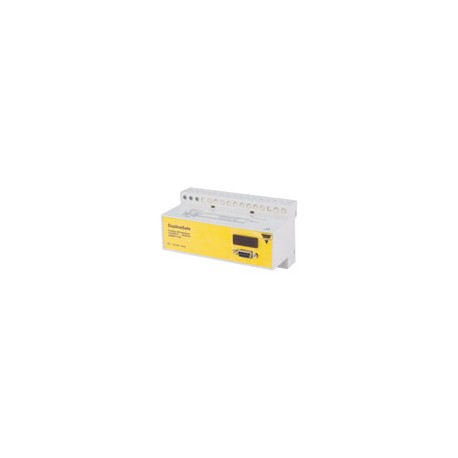

Dupline® Gateway with the function of a PROFIBUS-DP slave. This means that the Dupline® I/O’s (incl. Dupline® Safe signals) can be read/ controlled by PROFIBUS-DP masters (PLC’s, PC interface cards, etc. from various suppliers).

Several Dupline® gateways can be connected to the same Dupline® network. The unit is certified by PNO (Profibus Nutzer Organisation) which ensures compatibility and interoperability with other PNO-certified products.

Features

• Passive gateway without channel generator

• PROFIBUS-DP slave according to EN 50 170

• Certified by the PNO

• Can be connected at any point in a Dupline® network

• Several gateways can be connected to the same Dupline® network

• cULus approved

• PROFIBUS-DP communication speed of up to 12 M Baud

• Read/control 128 standard inputs/outputs through PROFIBUS-DP

• 63 DuplineSafe signals can be read via the PROFIBUS-DP network

• For mounting on DIN-rail (EN 50 022)

• LED indicators for supply, Dupline® carrier and fault

• AC power supply
