Description

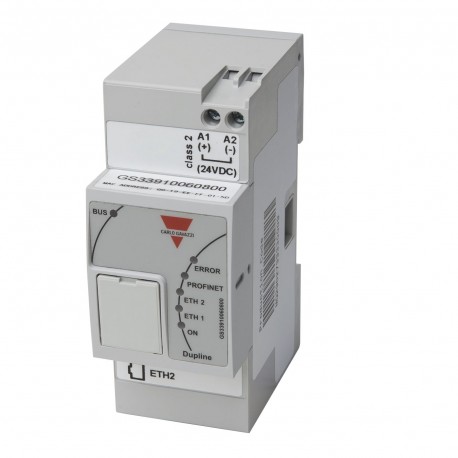

The GS33910060800 is a Profinet gateway with a built-in 2-port switch.
The module has no settings and works only in association with the master generator GS3390 0000 800. By installing the GSD file in the PLC, the installer can design the functionallity of e.g. digital in/out, analink, mux BCD and Dupline® safe signals.
After installation and connection it is possible, by using the mini webserver, to perform tests and diagnostics on both Profinet and the Dupline® networks (up to 7 Dupline® networks)
Benefits
• Profinet gateway with the function as a slave
• Up to 7 master generators can be connected via the HS RS485 bus (side connector)
• All Dupline® signals from the master generators are available on Profinet
• Mini webserver for diagnostics of Profinet and Dupline® networks
• Integrated 2-port switch
• 2-DIN UWP housing
• 24-VDC power supply
Features
| Power supply | 24 VDC +/- 20% |
| Overvoltage category | Overvoltage category II (IEC 60664-1, par. 4.3.3.2) |
| Rated impulse withstand voltage | 500V (1,2/50µs) (IEC 60664-1, tab. F.1) |
| Rated operational power | 2.8 W |
| Reverse-polarity protection | Yes |
| Connection | A1 (+) and A2 (-) |
| Power-ON delay | Typ. 4 s |
| Power-OFF delay | ≤ 1 s |
| Power supply to Ethernet bus | 500 V impulse (1.2/50us) 500 V AC for 1 min |
