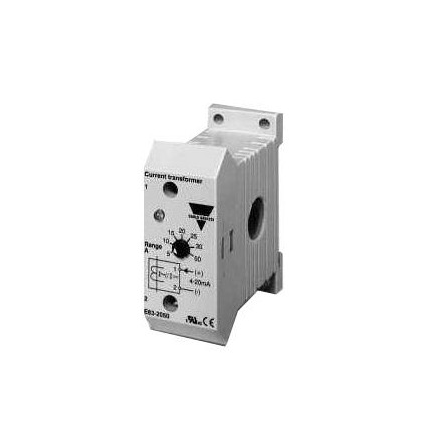

Small AC current metering transformer with 7 knob selectable ranges. Output from the transformer is 4-20 mADC in accordance with IEC 60381-1.

Can be used with relays DIB01, PIB01, DIC01 or PIC01 or directly connected to a PLC. Power supply ON is indicated by a green LED.

12 mm hole for isolated current carrying wire makes it suitable for most applications. For mounting on DINrail or directly on surface by screws.

Features

• 7 input ranges in one unit:

0 – 5 AAC

0 – 10 AAC

0 – 15 AAC

0 – 20 AAC

0 – 25 AAC

0 – 30 AAC

0 – 50 AAC

• Output 4-20 mADC

• Easy interface to PLC or setpoint relays

• For mounting on DIN-rail in accordance with DIN/EN 50 022

• 22.5 mm small Euronorm housing
