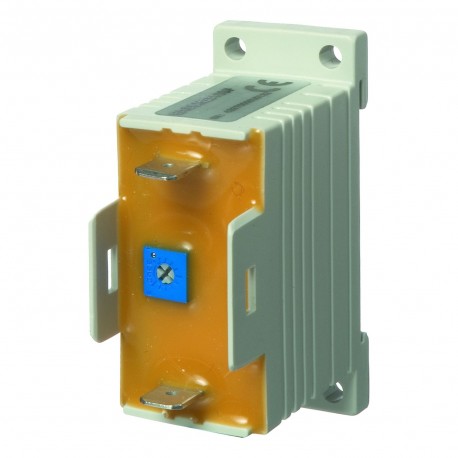

EAS Delay on Operate Timer (Fast-ON)
Loading...
Description
Small, low-cost mono function timer with adjustable time setting.
Only 2-wire connection for easy and fail-safe use.
For mounting on DIN-rail or directly on surface by screws. T
he timer is used e.g. to delay small industrial relays or 3-phase contactors.
Features
• Fail-safe two-wire connection
• Low-cost
• Multi-voltage: 24-230 VAC/DC
• Delay on operate
• Time range: 0.5 s – 10 m
• Knob-adjustable time setting
• Output: SCR 10-500 mA (screws) and SCR 10-700mA (Fast-ON)
• For mounting on DIN-rail in accordance with DIN/EN 50 022
• 22.5 mm small Euronorm housing
