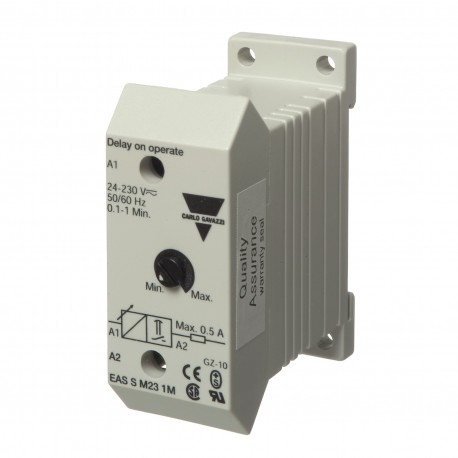

Small, low-cost mono function timer with adjustable time setting.

Only 2-wire connection for easy and fail-safe use.

For mounting on DIN-rail or directly on surface by screws. T

he timer is used e.g. to delay small industrial relays or 3-phase contactors.

Features

• Fail-safe two-wire connection

• Low-cost

• Multi-voltage: 24-230 VAC/DC

• Delay on operate

• Time range: 0.5 s – 10 m

• Knob-adjustable time setting

• Output: SCR 10-500 mA (screws) and SCR 10-700mA (Fast-ON)

• For mounting on DIN-rail in accordance with DIN/EN 50 022

• 22.5 mm small Euronorm housing
