Description

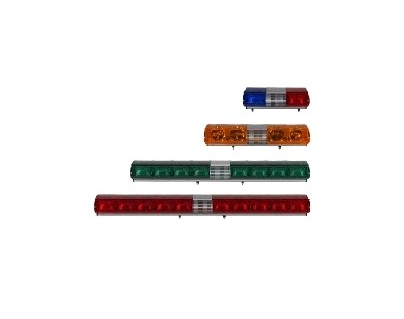

Suppliable Various Length, Color, and Function Suitable for Each Car Model and Its Use
Key Features:
- External Diameter: Ø136~280mm
- Height: 161mm
- Voltage Options: DC12V, DC24V, AC110V, AC220V
- Light Source: Highly efficient xenon lamp
- Durability: Long-lasting and intensive flashing light
- Customization: Various lens colors and lengths (460 to 1860mm) for different car models and uses
- High Visibility: Special diffusing lens for long-distance visibility
- Maintenance: Easy assembly, disassembly, and light changes with an earthquake-proof lamp and easy replacement lamp connector system
- Applications: Suitable for A/S cars, patrol cars, and parking facilities
- Built-in Speaker: Volume up to 120dB/m
- Lens Color Options: Blue-Red, Red-Red, Amber-Amber, Green-Green
- Material: Lens-PC, Speaker Cover, Board – Aluminum
- Certification: CE
- Protection Class: IP56
- Lens Design: AS lens designed for individual assembly, allowing multi-color combinations for each direction
Product Specification:
| Model | Length | Weight | Voltage/Current | LED Wattage | Lamp Model | Flashing Rate | Lens Color Options |
|---|---|---|---|---|---|---|---|
| ELM-S-1 | 588mm | 5.24Kg | DC12V/1.606A, DC24V/1.20A, AC110V/0.60A, AC220V/0.40A | 16W | BH0647(G) | 49 flashes/min | Blue-Red, Red-Red, Amber-Amber, Green-Green |
| ELM-S-2 | 868mm | 7.70Kg | |||||
| ELM-S-3 | 1148mm | 10.16Kg | |||||
| ELM-S-4 | 1428mm | 12.62Kg | |||||
| ELM-S-5 | 1708mm | 15.08Kg |
*Note: Current and weight are for one block product.
Available Specifications:
| Model | Number of Blocks | Voltage Options | Lens Color Options |
|---|---|---|---|
| ELM-S | 1, 2, 3, 4, 5 | 12-DC12V, 24-DC24V, 110-AC110V, 220-AC220V | B/R (Blue-Red), R/R (Red-Red), A/A (Amber-Amber), G/G (Green-Green) |
