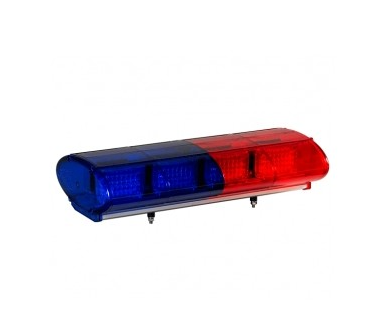

Suppliable Various Length, Color & Function Suitable for Each Car Model and Its Use

External Diameter :

Ø136~280mm

Height :

161mm

Voltage :

DC12V,24V
AC110V,220V

• Long durability and intensive flashing light by adapting highly effcient xenon lamp as light source.
• Possible to structure the product with length from 345mm to 1745mm according to the use.
• High visibility from long distance by adapting special diffusioning lens system.
• Adapting earthquake-proof lamp and easy replacement lamp connector system.
• Maintenance and repair is easy due to the convenient structure to assemble, disassemble and change the light.
• Suitable for full-sized special car, tow car, parking facilities and large plant equipments.
• Lens Color :   Blue-Red ,  Red-Red ,  Amber-Amber
• Material : Lens : PC, Board – AL
• Certificate : CE
• Protectionj Class : IP56

• AS lens is designed to be assembled individually, multi color combination for each direction is available

Product Specification

Model	Length	Weight	Voltage/Current	Bulb			Color
ELP-B-2	345mm	2.94Kg	DC12V/0.80A DC24V/0.60A AC110V/0.30A AC220V/0.20A	12V16W 24V16W 110V16W 220V 16W	BH0647(G)	49	Blue-Red  Red-Red  Amber-Amber  Green-Green
ELP-S-3	460mm	4.17Kg
ELP-S-4	625mm	5.40Kg
ELP-S-6	905mm	7.86Kg
ELP-S-8	1185mm	10.32Kg
ELP-S-10	1465mm	12.78Kg
ELP-S-12	1745mm	15.24Kg

• Current and Weight are for 1 block product.

Available Specification

ELP-S	–4	–12	–B/R
Model	No. of Block	Voltage	Color
ELP-S	2 3 4 6 8 10 12	12-DC12V 24-DC24V 110-AC110V 220-AC220V	B/R (Blue-Red)  R/R (Red-Red)  A/A (Amber-Amber)  G/G (Green-Green)
