New Product with Extending Lifespan Remarkably by Improving Durability and Airtightness

External Diameter :

Ø167~285mm

Height :

229mm

Voltage :

DC12V,24V
AC110V,220V

• Long durability and intensive flashing light by adapting highly efficient xenon lamp as light source.
• Possible to maintain see-through in hostile environment by adopting special-coated lens.
• High visibility from long distance by using special reflector and diffusioning lens.
• Maintenance and repair is easy due to the convenient structure to assemble, disassemble and change the light.
• Improving airtightness due to additional tightening system at upper part of the lens and extra control PCB  box.
• Adapting earthquake-proof lamps and easy replacement lamp connector system

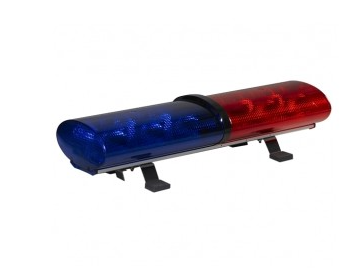

• Suitable for police car, fire engines, ambulance car, patrol car, road repair car, tow car and emergency A/S car.
• Speaker(Built-in) Volume : 130dB/m
• Lens Color :  Blue-Red , Red-Red , Amber-Amber , Green-Green
• Material : Lens : PC , Speaker Cover : SUS304, Board – AL
• Certificate : CE
• Protectionj Class : IP56
• Product of total length 1700mm andr other lengths are available under custom made
• Having built-in diffusion lens which emits signal light to 360° direction and easy catching signal in curved road and long distance.
• Possible to maintain see-through in hostile environment by adopting special-coated lens.
• Adapting earthquake-proof lamps and easy replacement lamp connector system.
• Maintenance and repair is easy due to the convenient structure to assemble, disassemble and change the light.
• Lens Color :  Blue-Red , Red-Red , Amber-Amber , Green-Green
• Material : Lens : PC , Speaker Cover : SUS304, Board – AL
• Certificate : CE
• Protectionj Class : IP56

Product Specification

Model	Rated Voltage	Current	Xenon Lamp			Weight	Color
ELV-S	DC12V	3.90A	12V 16W	EUB0641-1A(G)	48	8.70kg	Blue-Red  Red-Red  Amber-Amber
	DC24V	2.10A	24V 16W			8.70kg
	AC110V	0.60A	110V 16W			8.50Kg
	DC12V	0.40A	220V 16W			8.50Kg

• Current and weight is for 1 layer product.

Available Specification

ELR-S	–12	–B/R
Model	Voltage	Color
ELR-S	12-DC12V 24-DC24V 110-AC110V 220-AC220V	B/R (Blue-Red)  R/R (Red-Red)  A/A (Amber-Amber)
