Superior Adaptability even to a Hostile Environment as Vibration, Impact, Storm, Intense Cold and Severe Heat

External Diameter :

Ø167~285mm

Height :

229mm

Voltage :

DC12V,24V

• Long durability and intensive flashing light by adapting highly efficient xenon lamp as light source.
• Possible to maintain see-through in hostile environment by adopting special-coated lens.
• High visibility from long distance by using special diffusioning lens.
• Maintenance and repair is easy due to the convenient structure to assemble, disassemble and change the light.
• Improving airtightness due to additional tightening system at upper part of the lens and extra control PCB  box.
• Adapting earthquake-proof lamps and easy replacement lamp connector system
• Suitable for police car, fire engines, ambulance car, patrol car, road repair car, tow car and emergency A/S car.
• Speaker(Built-in) Volume : 130dB/m

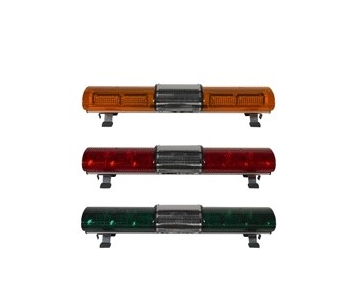

• Lens Color :   Blue-Red ,  Red-Red ,  Amber-Amber ,  Green-Green
• Material : Lens : PC , Speaker Cover : SUS304, Board – AL
• Certificate : CE
• Protectionj Class : IP56
• Product of total length 1700mm andr other lengths are available under custom made

Product Specification

Model	Rated Voltage	Current	Bulb			Weight	Color
ELV-S	DC12V	3.90A	12V 16W	BH0647(G)	49	12.70kg	Blue-Red  Red-Red  Amber-Amber  Green-Green
	DC24V	2.10A	12V 16W			12.70kg

Wiring diagram

Available Specification

ELV-S	–(SPEAK)	–12	–B/R
Model	Volume	Voltage	Color
ELV-S	SPEAK	12-DC12V 24-DC24V	B/R (Blue-Red)  R/R (Red-Red)  A/A (Amber-Amber)  G/G (Green-Green)
