Description

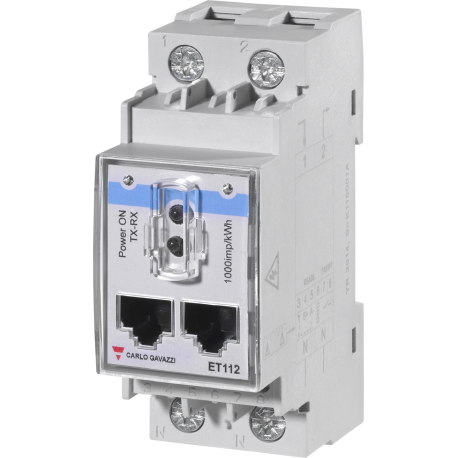

Single-phase energy transducer. Particularly indicated for active energy metering and for cost allocation in applications up to 100 A (direct connection), with dual tariff management availability.
It can measure imported and exported energy or be programmed to consider only the imported one. Housing for DIN-rail mounting, with IP20 front degree protection.
The transducer is provided with RS485 Modbus port (available through screw terminals, dual RJ45 connectors or optical infrared communication port). A run-hour meter is available to link the energy to the relevant working hours.
Features
• Single phase energy transducer
• Class 1 (kWh) according to EN62053-21
• Accuracy ±0.5% RDG (current/voltage)
• Direct current measurement up to 100AAC
• Energy measurement: kWh and kvarh (imported/ exported); kWh+ by 2 tariffs
• System variables, kW, kvar, V, A, PF, Hz, kWdmd, kWdmd peak
• Self power supply
• Dimensions: 2-DIN module
• Protection degree (front): IP20
• RS485 Modbus port (screw terminals and RJ45 connection)
• Optical port
• Digital input (for tariff management)
• Easy connection or wrong current direction detection
• Run hour meter
