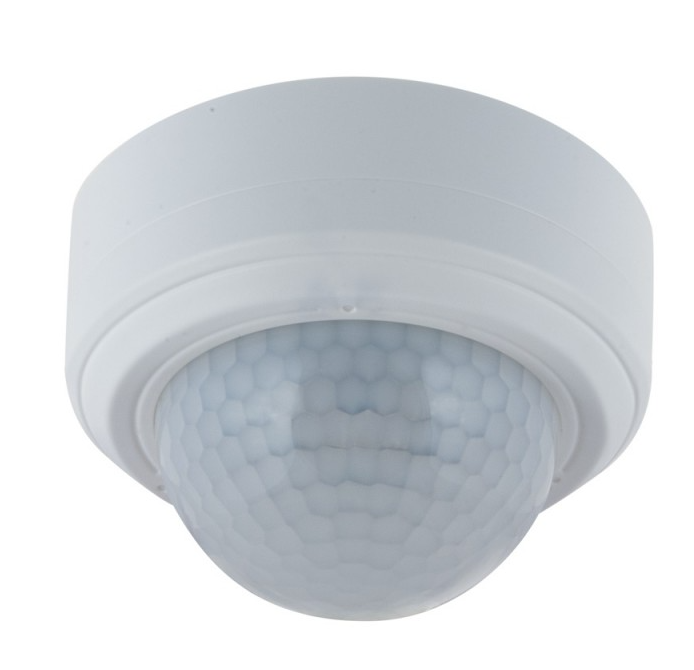

The SxQP360L is a 360° PIR sensor to detect presence and/or movement in indoor installations with a built-in luxmeter, combining two products in one.

It is part of the Carlo Gavazzi building automation sistem and can be used to control lights, rollerblinds, air-conditioning, intruder alarms and all the other functions supported by the system, in an automatic way depending on people-presence.

This sensor is completely programmable via the UWP/Sx tool.

Benefits

• Integrated system. Dupline® is the brand name for Carlo Gavazzi’s 2-wire bus system.

• Cost reduction. The use of a bus system is a proven way to reduce installation costs – especially when the distance between I/O points are extensive.

• Fast and easy installation. Completely free topology, no special cable required, no screen or twist. It can go for 2 km and even further with repeaters.

• High noise immunity. Can run next to power cables.

• Scalability. New modules can be progressively integrated into the system according to the application needs.

• Modularity. The system is composed by many modules, powered by the bus, so that each installation can be precisely and easily sized.

Features

• Detection range: SHQxxx Ø 14 m at 2.7 m, SBQxxx Ø 24 m at 2.7 m

• Mounting height: SHQxxx 2 m….8 m, SBQxxx 2 m ….6 m

• Detection angle: 360°

• Presence and movement detection

• Integrated daylight sensor: light measuring range 0 to 80 klux

• Programmable blue and white LEDs

• Programmable detection area

• Indoor and outdoor installation

• Powered by the bus
