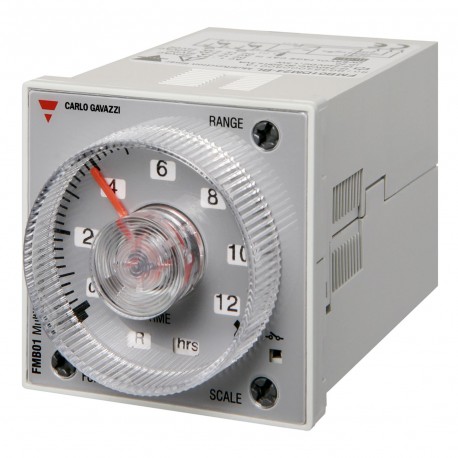

Multifunction timer with 7 functions and selectable time range from 0.05 seconds to 300 hours.

48 x 48 mm for front panel mounting and on 11-pin socket.

Features

Time range 0.05 s to 300 h

• Knob selection of time range

• Knob adjustable time setting

• Knob selection of operating mode (7 functions):

Op – delay on operate

Rb – symmetrical recycler OFF first

R – symmetrical recycler ON first

Id – double interval

Dr – delay on release

In – interval

Io – interval on trigger open

• Manual start

• Gate and reset inputs

• Repeatability: ±0.2% on full scale

• Output: 8 A DPDT relay

• 48 x 48 mm housing for front panel mounting

• 11 pin socket

• LED indication for relay status and power supply ON
