Description

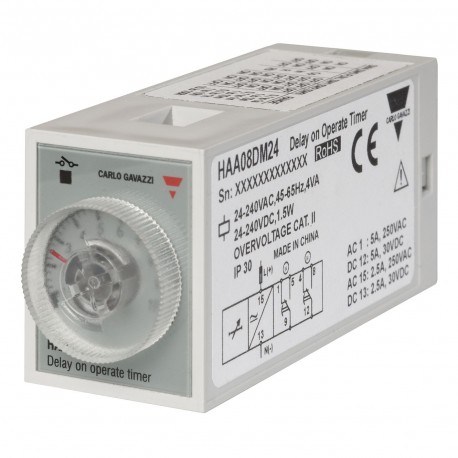

Delay on operate timer with 4 functions and selectable time ranges from 0.1 seconds to 100 hours.
Housing 21.5 x 28 mm with 8-pin and 14-pin blade socket.
Features
• Time range 0.1 s to 100 h
• Dip-switch selection of time range
• Knob adjustable time setting
• Dip-switch selection of operating mode (4 functions):
Op – delay on operate
R – symmetrical recycler ON first
Rb – symmetrical recycler OFF first
In – interval
• Automatic start
• Repeatability: ± 0.3% on full scale
• Output: 8 A DPDT relay (HAA08), 5 A 4PDT relay (HAA14)
• 21.5 x 28 mm housing
• 8-pin, 14-pin blade socket for HAA08, HAA14 respectively
• LED indication for relay status and power supply ON
