Description

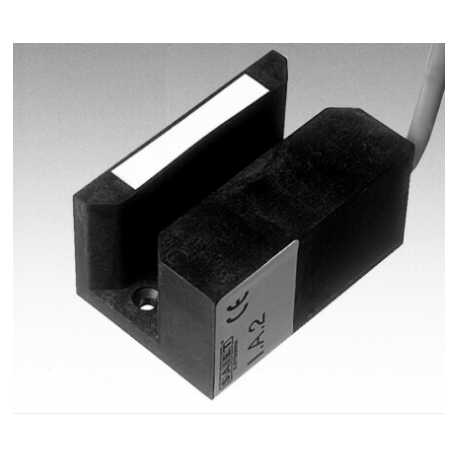

The I types models are available on request with multiple contacts. Single contact version can have NO, NC and change-over output functions. In multiple contacts versions the maximum number of contacts is three. The minimum air gap from ferromagnetic parts is 20 mm; the minimum distance between the fixing holes of two contiguous sensors is 15 cm. The optimum dimensions of soft iron actuator are 60 x 80 x 2 mm.
Features
• Slot case
• Plastic body
• NO, NC or Change-over output function
• Multiple contact versions
