Description

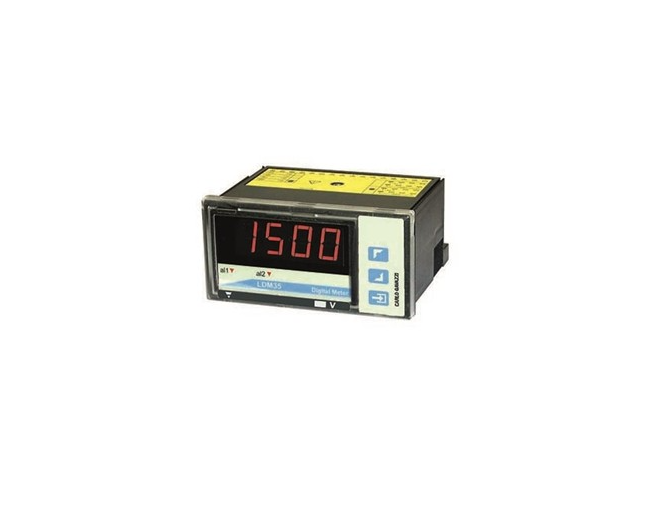

µP-based digital panel meter, 3 1/2 dgt LED indicator and controller, for current, voltage measurements. Measuring ranges and functions easily programmable from the key-pad.
LDM35H includes storage min-max functions and double level protection password. Housing for panel mounting with front protection degree: IP65.
Features
• Multi-input instrument 3 1/2 dgt LED
• 0.1% RDG basic accuracy
• TRMS AC current and voltage measurements
• AC/DC current measurements: selectable full scales (200µA to 5A)
• AC/DC voltage measurements: selectable full scales (200mV to 500V)
• Up to 2 independent alarm set-points (optional)
• Universal power supply: 18-60VAC/DC and 90-260VAC/DC
• Front protection degree: IP65
