Description

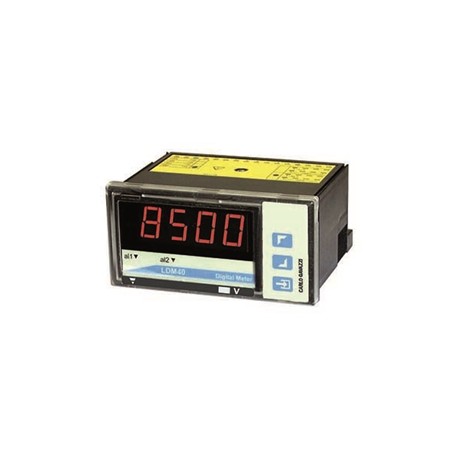

µP-based digital panel meter, 4-DGT LED indicator and controller, for current, voltage measurements. Measuring ranges and functions easily programmable from the front key-pad.
LDM40 includes storage min-max functions and two-level protection password. One analogue output and serial communication port RS485 available on request.
Housing for panel mounting with front protection degree: IP65.
Features
• Multi-input instrument 4-DGT LED
• 0.1% RDG basic accuracy
• TRMS AC current and voltage measurements
• AC/DC current measurements: selectable full scales (200µA to 5A)
• AC/DC voltage measurements: selectable full scales (200mV to 500V)
• Up to 2 independent alarm set-points (optional)
• 20mA/10V DC analogue output (optional)
• RS485 serial communication port (optional)
• Modbus, Jbus communication port
• Universal power supply: 18-60VAC/DC and 90-260VAC/DC
• Front protection degree: IP65
