Description
M.I.E Terminal blocks are manufactured in compliance with EC directives (CE certified) and strict quality standards for extra reliability and performance.
| Item No. | Rated Voltage | Rated Current |
Dielectric Strength |
Insulation Resistance | Applicable Wire | Applicable Screw | Number of Poles |
| IN12SBK-C | 600v | 20A | 2500v 1min | 100MΩ Min | 2mm² MAX | M3.5 | 2Poles |
| IN13SBK-C | 600v | 20A | 2500v 1min | 100MΩ Min | 2mm² MAX | M3.5 | 3Poles |
| IN20BK-C | 600v | 30A | 2500v 1min | 100MΩ Min | 3.5mm² MAX | M4 | 3Poles |
| IN30BK-C | 600v | 50A | 2500v 1min | 100MΩ Min | 8mm² MAX | M5 | 3Poles |

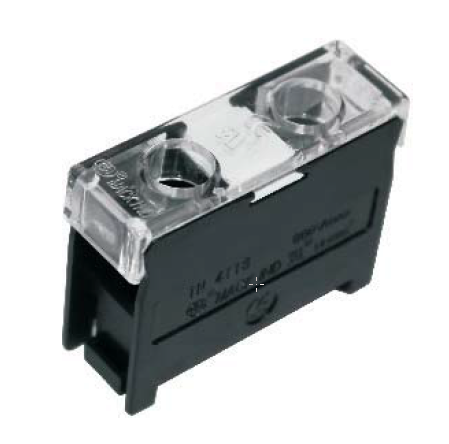

| IN411S-C | 600v | 60A | 2500v 1min | 100MΩ Min | 14mm² MAX | M5 | 1Poles |
| IN60BK-C | 600v | 90A | 2500v 1min | 100MΩ Min | 22mm² MAX | M6 | 1Poles |
| IN100K-C | 600v | 130A | 2500v 1min | 100MΩ Min | 38mm² MAX | M8 | 1Poles |
| IN200K-C | 600v | 240A | 2500v 1min | 100MΩ Min | 100mm² MAX | M10 | 1Poles |
| IN400K-C | 600v | 370A | 2500v 1min | 100MΩ Min | 200mm² MAX | M12 | 1Poles |
