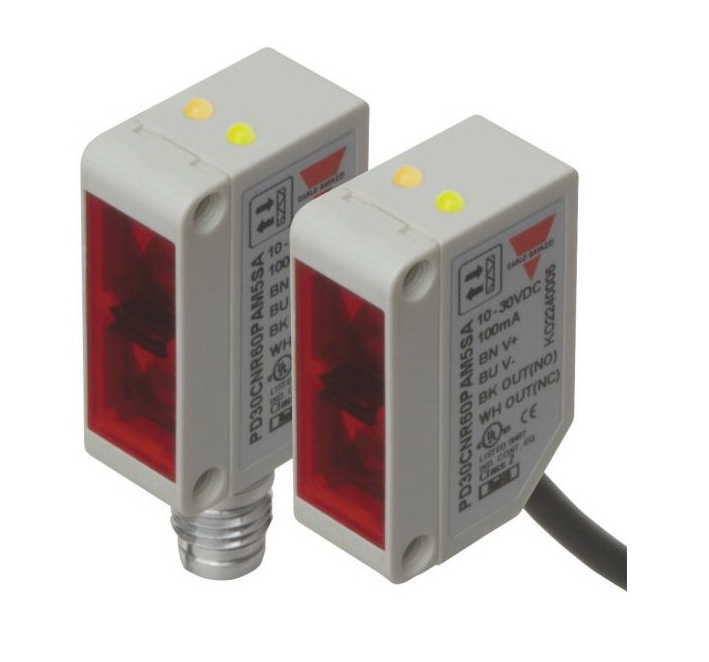

The PD30CND10 sensor family comes in a compact 10 x 30 x 20 mm reinforced PMMA/ABS housing.

The sensors are useful in applications where high-accuracy detection as well as small size is required. Compact housing and high power LED for excellent performance-size ratio.

The Potentiometer function for adjustment of the sensitivity makes the sensors highly flexible.

The output type is preset (NPN or PNP), and the output switching function is NO and NC output.

Features

• Miniature sensor range

• Range: 1 m

• Sensitivity adjustment by Potentiometer

• Modulated, red light 625 nm

• Supply voltage: 10 to 30 VDC

• Output: 100 mA, NPN or PNP preset

• Make and break switching function

• LED indication for output, stability and power ON

• Protection: reverse polarity, short circuit and transients

• Cable and plug versions

• Excellent EMC performance
